Mechanical Curtain Wall Anchor
Façade anchors are the critical load-bearing elements of mechanical curtain wall cladding systems, transferring the weight of ceramic, granite, composite, stone or aluminium panel cladding to the main building reinforced concrete structure. These systems are subjected to dynamic forces including wind load, seismic activity, thermal expansion and self-weight throughout the building's life — making correct anchor selection vital for structural safety. Aluminium and sheet steel façade anchors manufactured by Hira Metal on high-tonnage press lines to international building standards feature precise slotted adjustment channels for safe, fast and accurate on-site installation. Hot-dip galvanised and electrostatic galvanised finishes are also available.
L Anchor & Wide-L Anchor
- L Anchor: The most widely used connector for fixing T and L profiles to the main wall in classic curtain wall sub-frame systems. Oval adjustment channels easily accommodate plumb deviations.

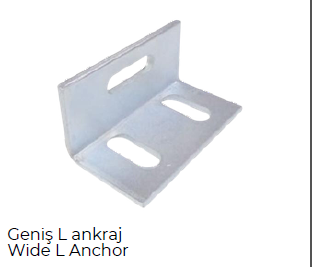

- Wide-L Anchor: Extended surface area model for heavy stone or granite cladding, or projects requiring a greater stand-off distance. Optimises load distribution for enhanced resistance to high wind pressure.

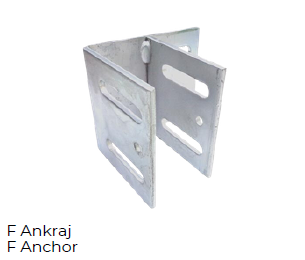

F Anchor
- A special F-geometry connector designed to grip and fix profiles from one side at corner junctions, façade terminations or along window/door reveals where space is limited. Provides maximum strength in confined areas.
U Anchor Types

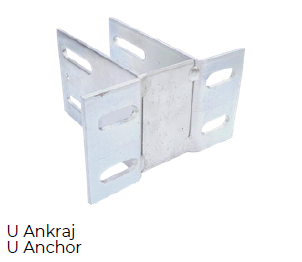

- Standard U Anchor: The primary load-carrying anchor gripping the profile from both sides for bi-directional clamping with very high load capacity.

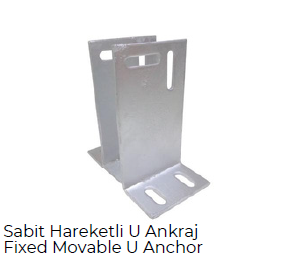

- Fixed / Sliding U Anchor: The combined channel design allows it to serve as either a fixed dead-load point or a sliding wind-load point that accommodates building settlement movement.

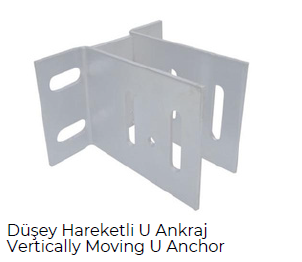

- Vertically Sliding U Anchor: Engineered to absorb vertical profile expansion caused by earthquakes, wind or temperature changes. Allows the profile to move freely in the vertical axis, preventing façade cracking or buckling.

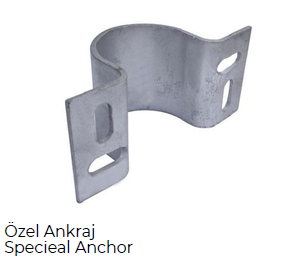

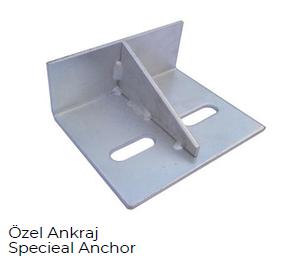

Custom Anchor Manufacturing
- For project-specific architectural details, non-standard stand-off distances or high static load requirements, we manufacture bespoke anchors to your technical drawings and samples — any wall thickness, hole diameter and millimetre-precision dimensions.
Why Hira Metal?
- Direct Factory Wholesale Pricing: As a manufacturer, we offer the most competitive pricing for large site projects, subcontractors and distributors.
- High Corrosion Resistance: Hardened aluminium alloy or hot-dip galvanised/stainless steel material quality for lifetime durability against outdoor climate, moisture and humidity.
- Precision Slotted Channel Design: Our exacting tooling ensures bolts and anchor bolts seat perfectly during installation, minimising on-site labour time and cost.
